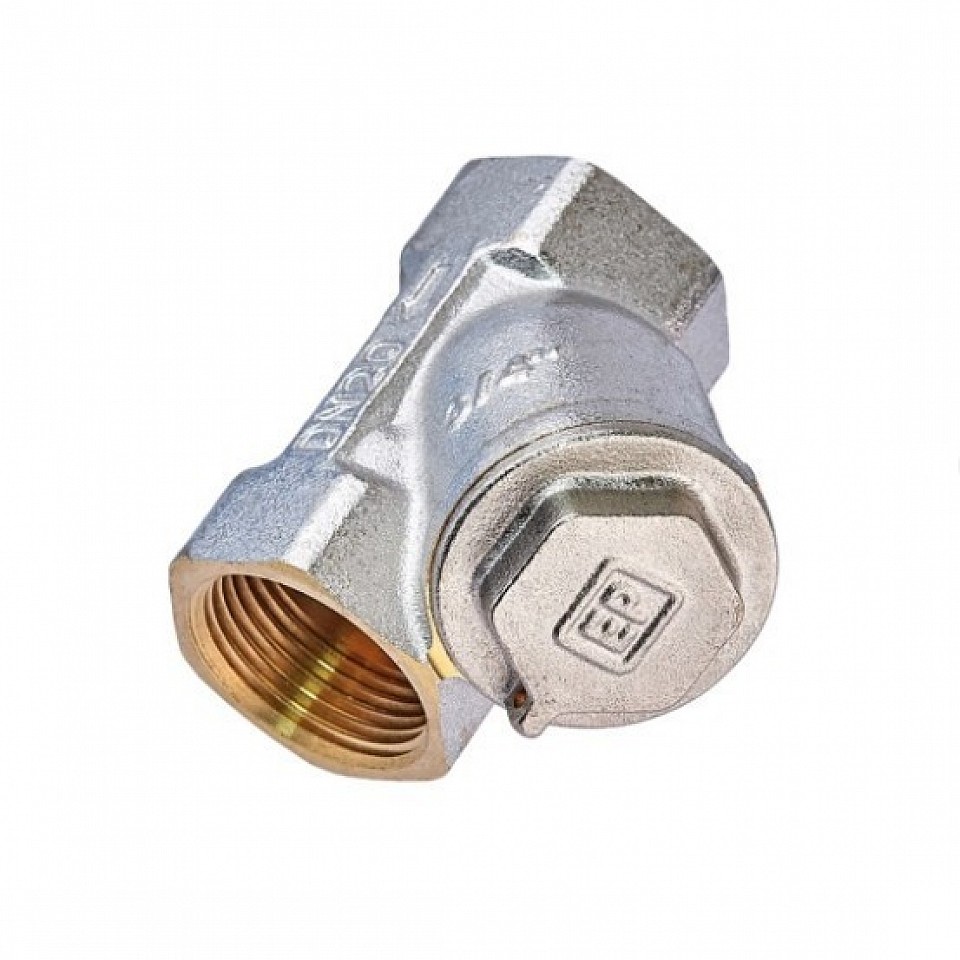

The EUROPRODUCT EP.0460 3/4” Y-strainer filter is designed to protect circulation pumps and system components from mechanical impurities in heating and water supply systems.
It is suitable for use in residential, commercial, and industrial applications with high water flow volumes.
Application
This coarse filter prevents debris such as dirt, rust, and particles from entering and damaging system components, ensuring longer service life and stable operation.
⚠️ During installation, ensure correct positioning according to the flow direction indicated on the body.
Key Features & Benefits

Reliable protection for pumps and system components Suitable for high-volume water systems Durable brass construction for long service life High filtration capacity for efficient performance Easy integration into existing systems

Construction & Materials

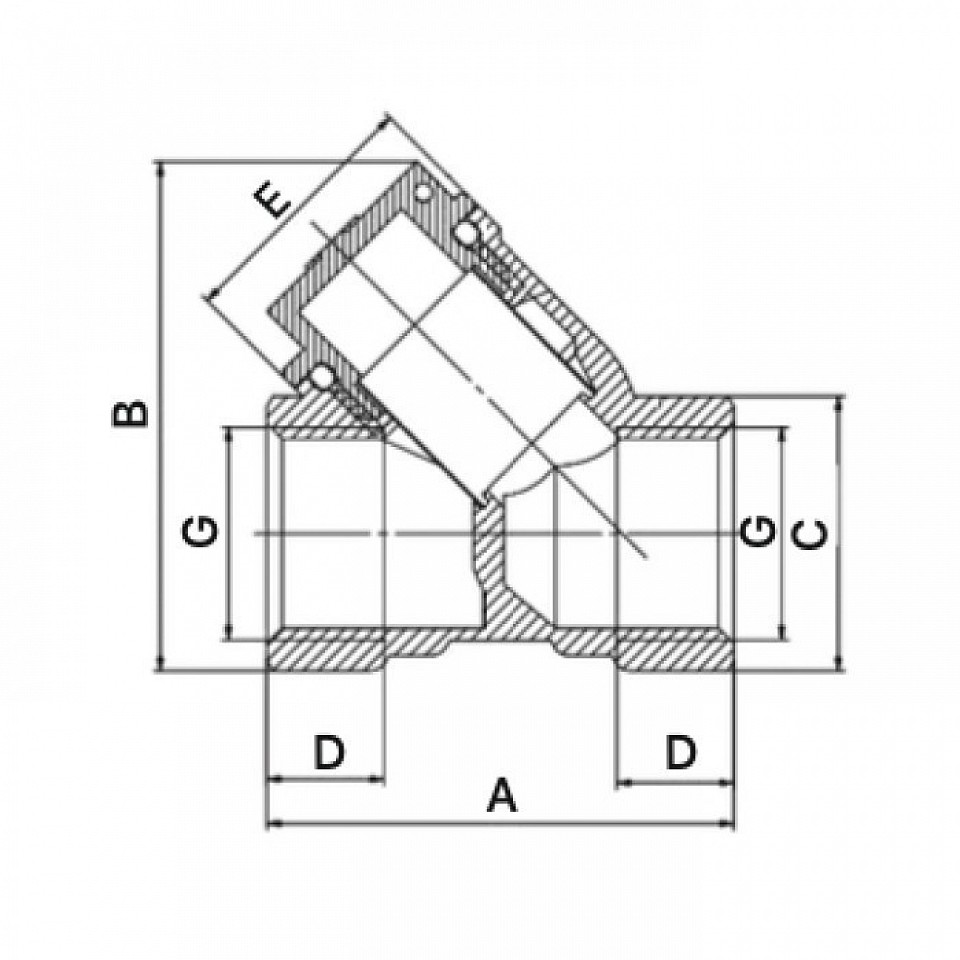

Body material: brass CW617N Type: Y-strainer (coarse filter) Connection: threaded

Technical Specifications

Model / SKU: EP6051 Connection size: 3/4” (DN20) Flow capacity: 4 m³/h

Filter Characteristics:

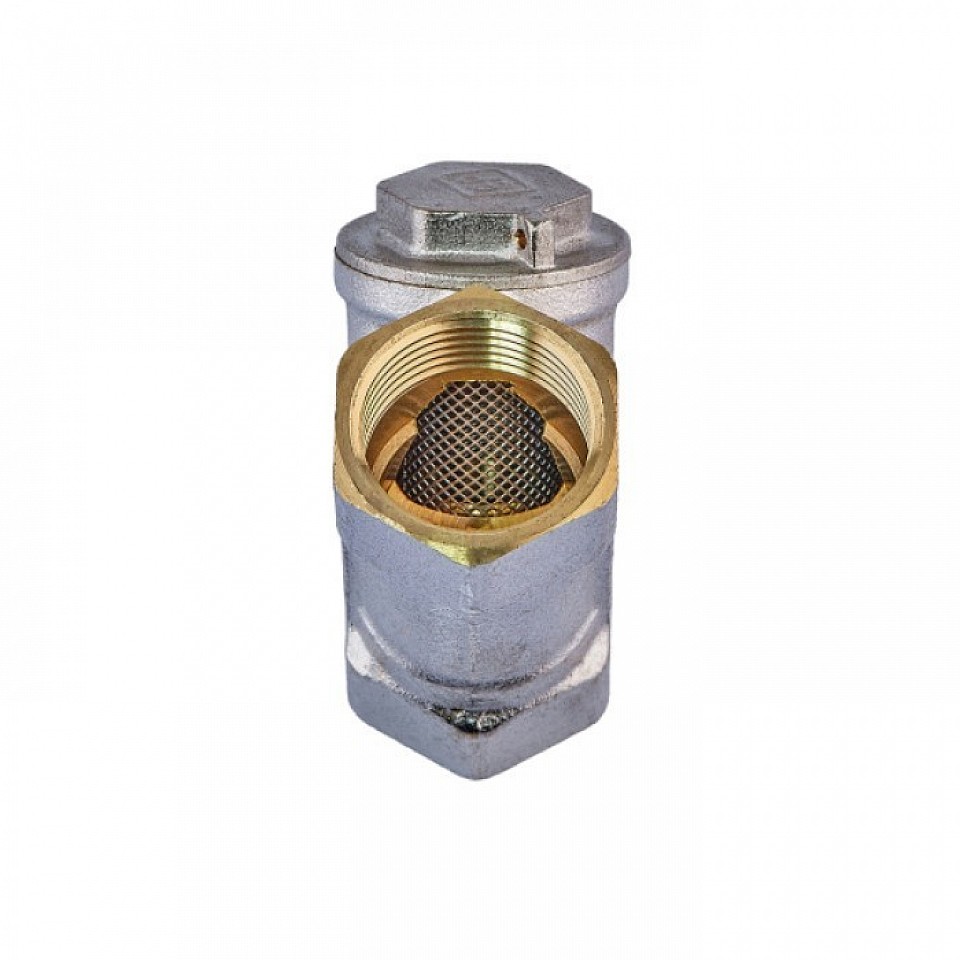

Mesh density: 156 cells/cm² Mesh size: 500 microns Cell spacing: 1.1 mm

Operating Conditions:

Working pressure: up to 20 bar Temperature range: +5°C to +150°C

General Information

Application: heating and water supply systems Warranty: 10 years Brand country: Slovenia Country of manufacture: China
