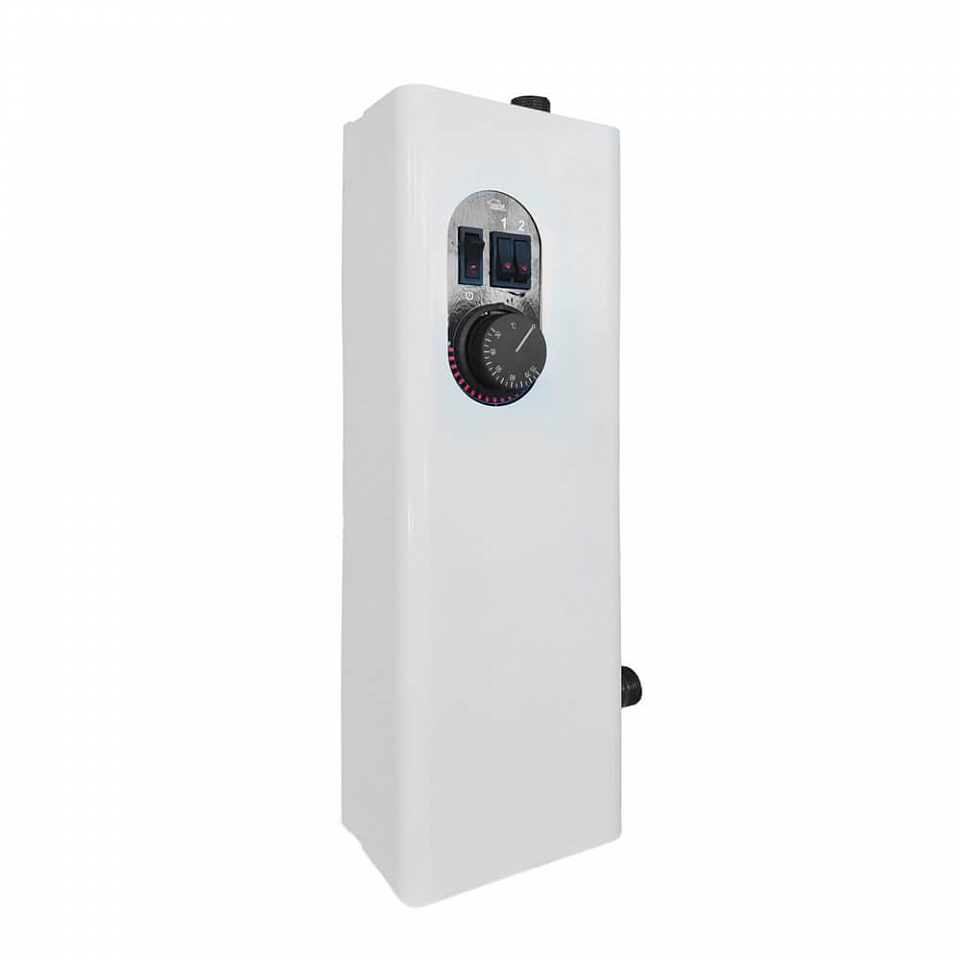

NEON WCE Mini Silent Electric Boiler 6/230
NEON WCE Mini 6 kW 230V
Compact Wall-Mounted Electric Boiler for Spaces up to 60 m²
The NEON WCE Mini 6 kW 230V is a compact and affordable wall-mounted electric boiler with silent triac switching, designed for efficient heating of spaces up to 60 m².
Key Features
Two power levels: 3 – 6 kW
Silent triac-based switching
Double overheat protection
Built-in thermostat
Pump not included
Expansion tank not included
Thermometer not included
Application
The NEON WCE Mini 6/230 electric boiler is designed for autonomous heating of private homes and small commercial spaces up to 60 m².
It operates with forced circulation of the heat transfer fluid and connects to a single-phase 230V power supply.
This is a budget-friendly solution for heating cottages, country houses, and small spaces.
The unit can be used as:
a primary heat source (requires installation of a circulation pump, safety group, and expansion tank), or
a backup heating source alongside gas or solid fuel boilers.
Advantages of NEON WCE Mini
Silent operation thanks to triac switching
Two independent power levels (3 + 3 kW) controlled by separate buttons
Minimal configuration ensures:
lower cost
compact dimensions: 500 × 150 × 115 mm

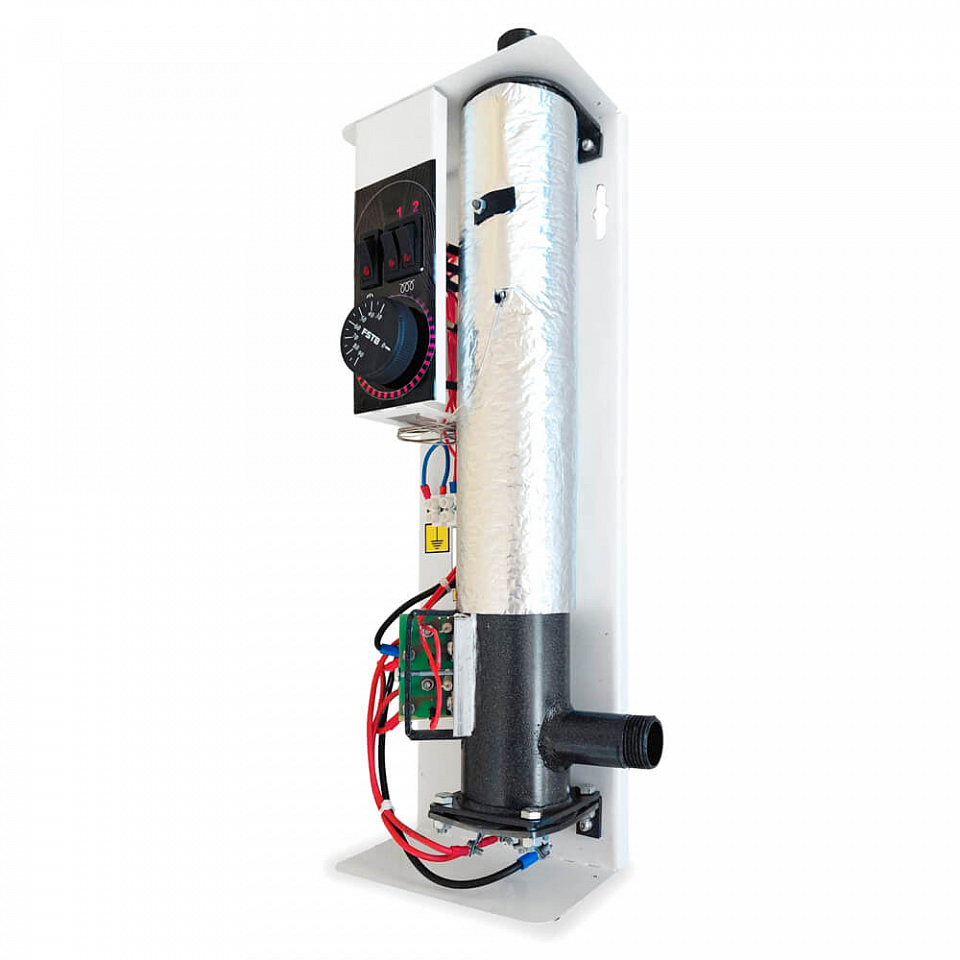

Design & Components

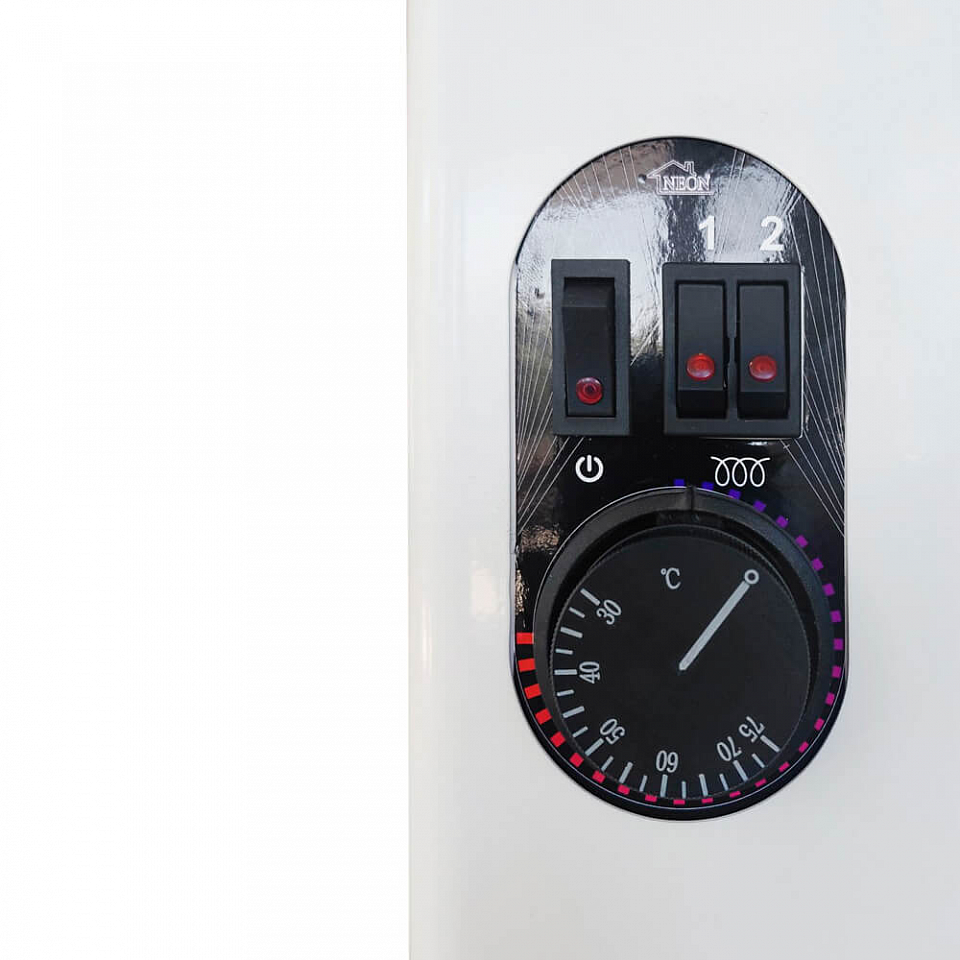

Circuit breaker switch with LED operation indicator
Heating element control buttons (3 + 3 kW), each with LED indicators
Thermostat dial adjustable from 30°C to 75°C
Circulation pump and expansion tank are not included and must be installed separately (required for operation)
This model does not include a thermometer
Steel корпус according to JIS SS330 standard, color: white (ivory)

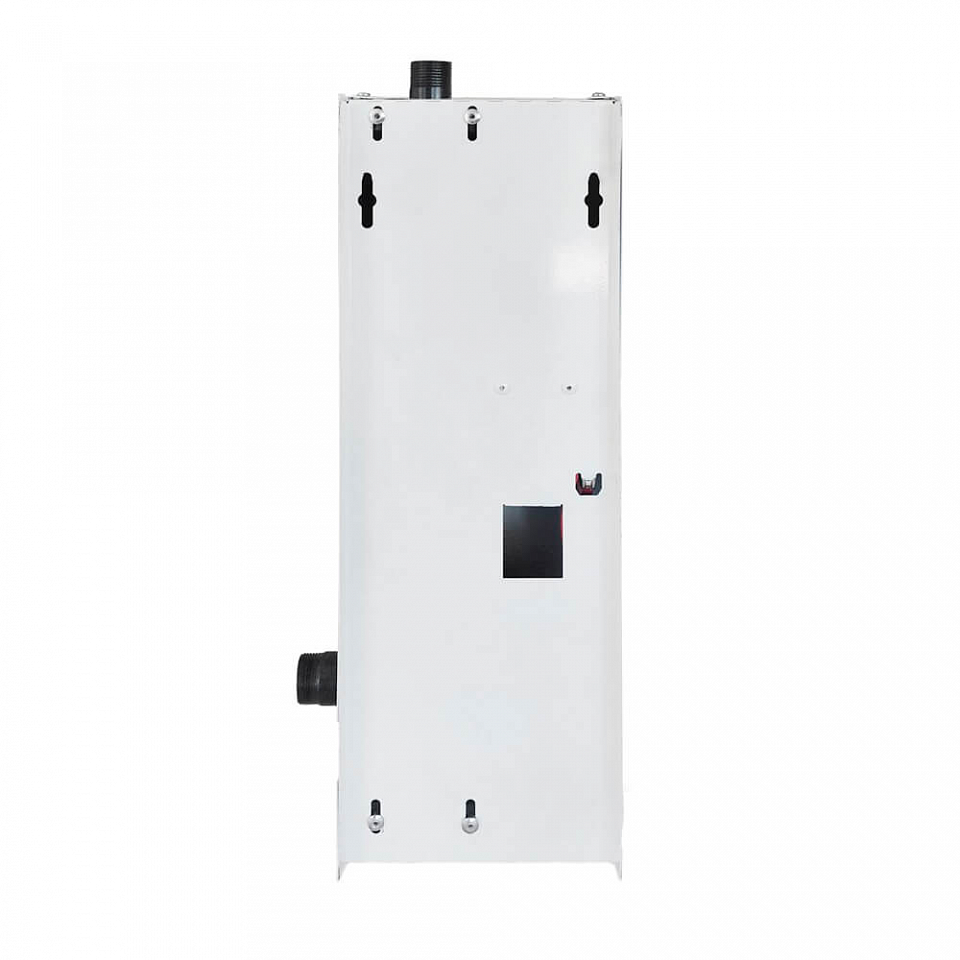

Wall-mounting plate included
Weight: up to 4 kg
Summary
Compact electric boilers like the NEON WCE Mini 6 kW 230V provide an affordable and efficient solution for heating spaces up to 60 m².
