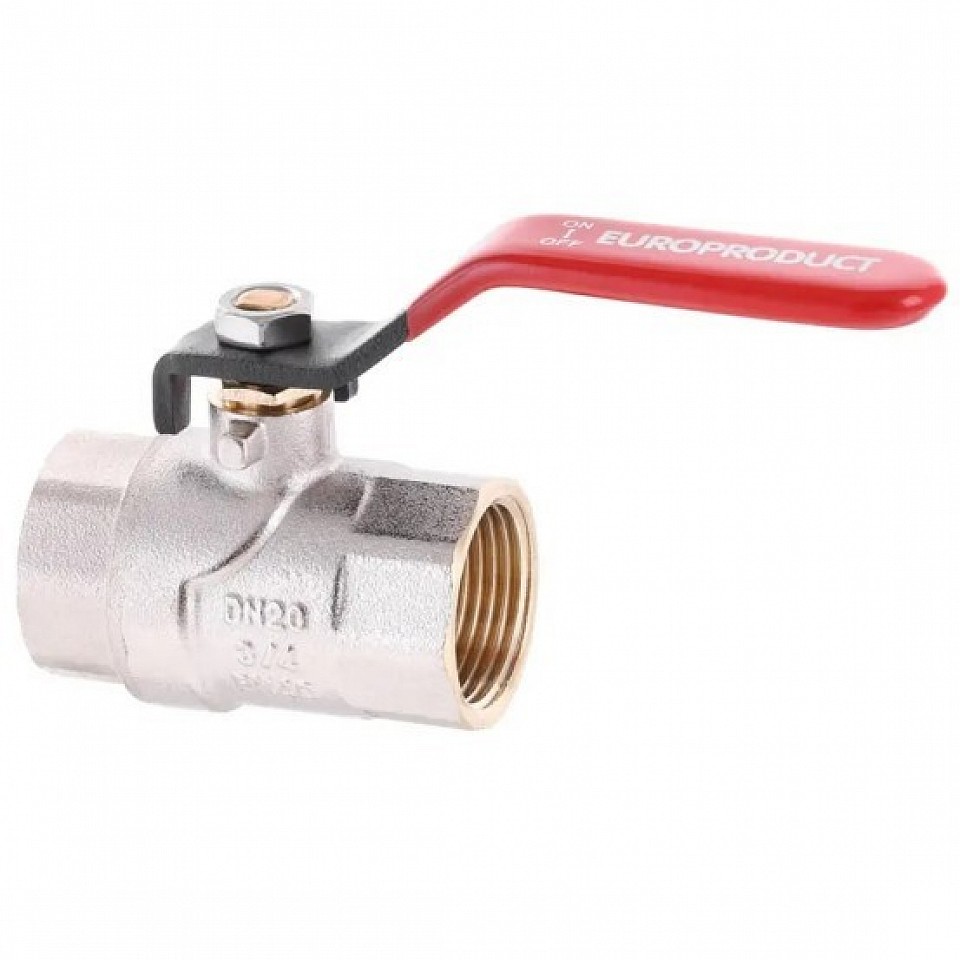

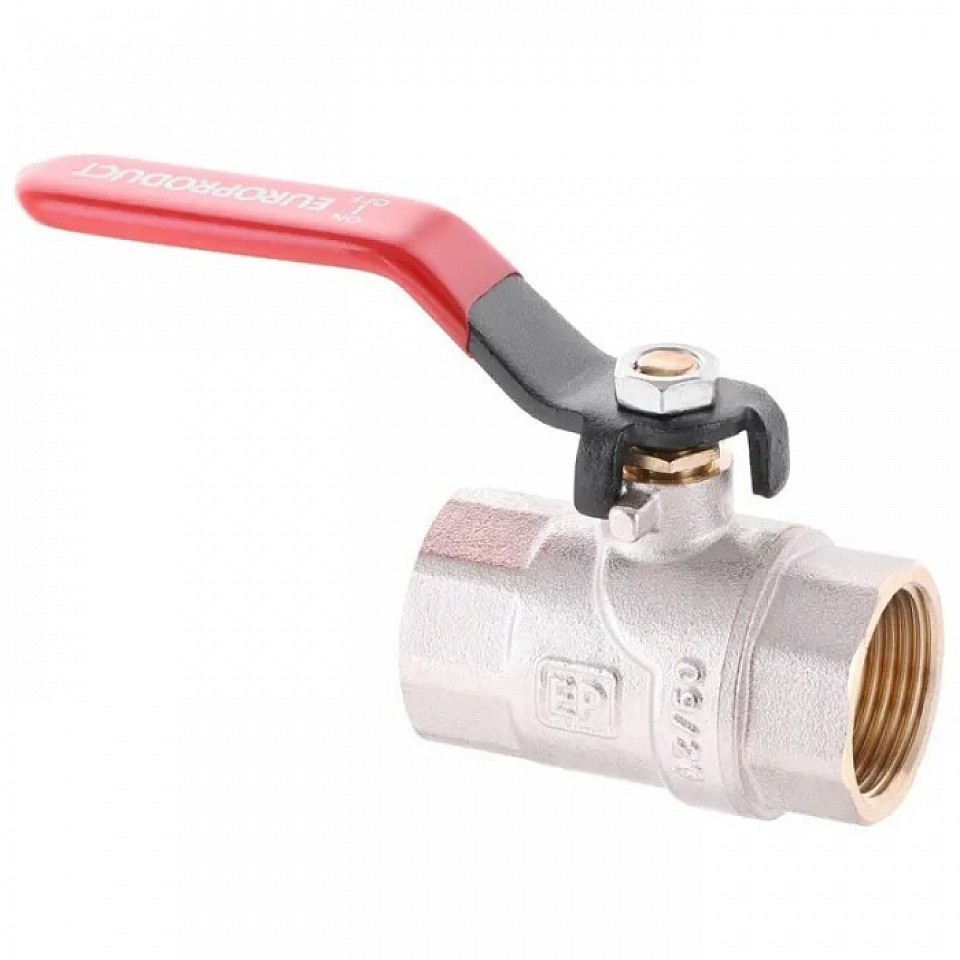

The EUROPRODUCT 3/4” ball valve EP.220 is a reliable and cost-effective shut-off valve designed for use in water supply, heating, compressed air systems, and pipelines transporting non-aggressive liquids.
Application
This valve is used as a shut-off device in systems such as:

potable and domestic water supply hot water systems heating systems compressed air lines pipelines for non-aggressive liquids and light hydrocarbons

⚠️ The valve is not intended for flow regulation (on/off use only).
Key Features & Benefits

Affordable and reliable solution for residential systems Durable construction for long-term use Standard 3/4” connection size Smooth and secure opening/closing with ball mechanism Easy installation with female–female threaded connection Lever handle for convenient manual control

The reduced cost is achieved by optimizing wall thickness (approx. 20% thinner), without affecting durability in standard household use.
Construction & Materials

Body: nickel-plated brass CW617N (corrosion-resistant) Ball: chromed brass HPb57-3 Stem: nickel-plated brass CW617N Lock nut: stainless steel Handle: lever type (red color)

All EUROPRODUCT ball valves comply with relevant quality and safety standards and are certified accordingly.
Technical Specifications

Model / SKU: EP2938 Connection type: threaded (female–female) Connection size: 3/4” Handle rotation angle: 90° Flow type: standard bore Tightness class: Class A

Pressure Ratings:

Recommended working pressure: 16–30 bar Maximum pressure: PN 40

Operating Conditions:

Ambient temperature: -5°C to +60°C Medium temperature: -5°C to +120°C Ambient humidity: up to 60%

General Information

Weight: 0.234 kg Manufacturer: EUROPRODUCT Minimum service life: 10 years
